2025 Peterbilt 548 (3150-Gallon / 70 BBL) Diamond ECO DOT 412 Code Liquid Vacuum Truck w/ Automatic Trans

$279,900.00

$402,076.35

FET INCLUDED
Click To Apply

IN-PRODUCTION

Vehicle Overview
Features & Options

Stock Number: GL2491

*IN-PRODUCTION FOR COMPLETION IN 4-WEEKS

PRICE $279,900 (FET INCLUDED IN PRICE)

LEASE FOR AS LOW AS $4,640 PER MONTH FOR 72 MONTHS WITH A $1.00 BUYOUT – BASED ON APPROVED CREDIT

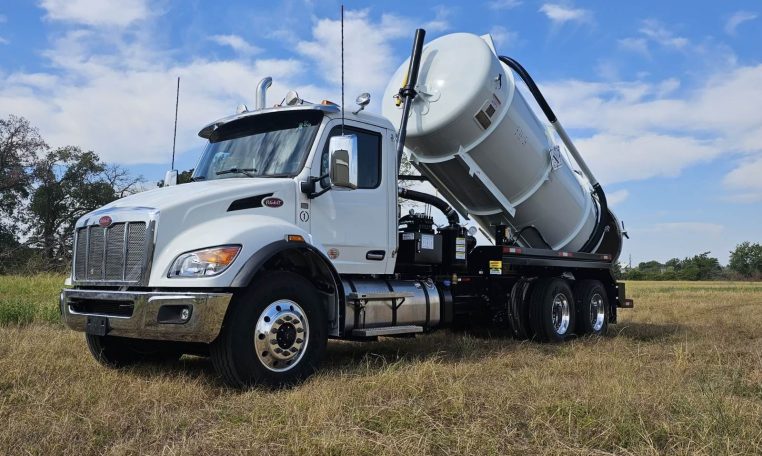

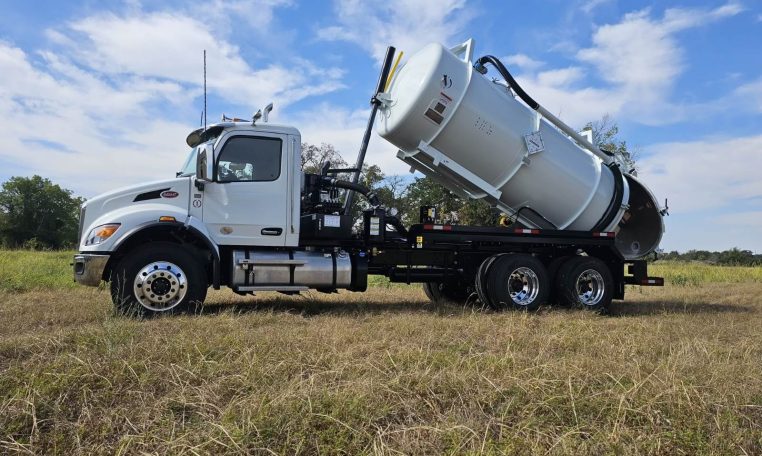

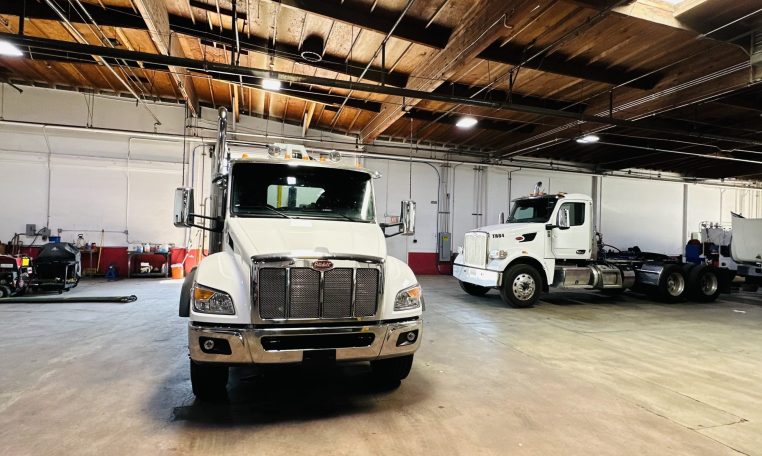

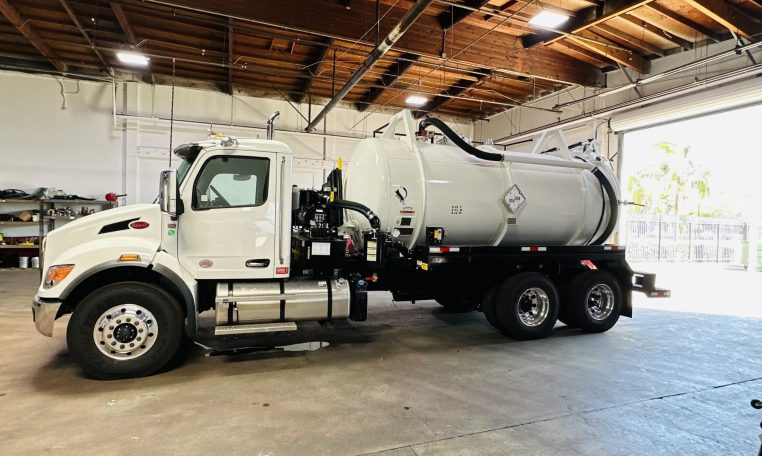

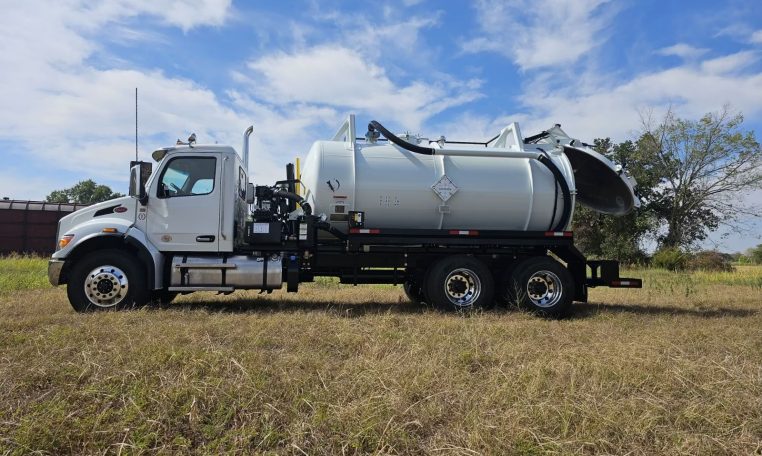

*PICTURES ARE NOT OF THE ACTUAL TRUCK

2025 PETERBILT 6X4 Chassis, Paccar PX-9 (350 HP) Diesel Engine, Allison 3000 RDS 6-Speed Automatic Transmission, Cruise Control, Power Windows, Locks and Mirrors, Heated Mirrors, Anti-Lock Braking System (ABS), VGT Exhaust Brake, Diff Locks, Wheelbase 230″, 4.88 Rear Axle Ratio, 50 Gallon Fuel Tank, ALCOA Polished Aluminum Wheels, Taper Leaf Springs 20,000# Front Suspension, Peterbilt Air Trac 40,000# Rear Suspensions, 60,000 GVWR.

Diamond ECO Solutions DOT Code 412 Vacuum Tank

DOT Code 412 Carbon Steel Vacuum Tank
3,150 Gallon / 70 BBL Capacity
5/16″ Carbon Steel SA-516-709 Heads
5/16″ Carbon Steel SA-36 Shell
70″ OD Tank Diameter
Design Pressure: (Internal) 25 PSI (External) 15 PSI (Full Vacuum)
1/2″ Flat Bar External Reinforcement Rings
Overturn Protection w/ Reinforcement Pads
3″ Stainless Steel, 25 PSI (412) Pressure Relief Vent
4″ Primary Shutoff w/ 6″ Stainless Steel Float Ball Seating Against Neoprene Seat
Two (2) 30/30 Vacuum/Pressure Gauges. One Near the Controls and One on the Rear Tank Head
External Arrow Rotary Float Gauge w/ 8″ Stainless Steel Float Ball
One (1) Top 20″ Diameter Manway
One (1) 4″ Air Operated Self Closing NVE Valve, Coupling, 12V Heat Block and Drip Cap
4″ Internal Riser Pipe w/ Deflector Wear Plate
One (1) 6″ Air Operated Self Closing NVE Discharge Valve, Coupling, 12V Heat Block and Drip Cap
Jurop RV520 (530 CFM @ 28″ Hg) Air-Cooled Vacuum/Pressure Rotary Vane Pump
Pump Oil Catch Muffler w/ Drain Valve, Camlock Coupling for Exhaust Hose Adapter
Hydraulic Operated Full Opening Rear Door w/ HD Wingbolt Closures
Patented Self-Engaging Backdoor Safety Prop

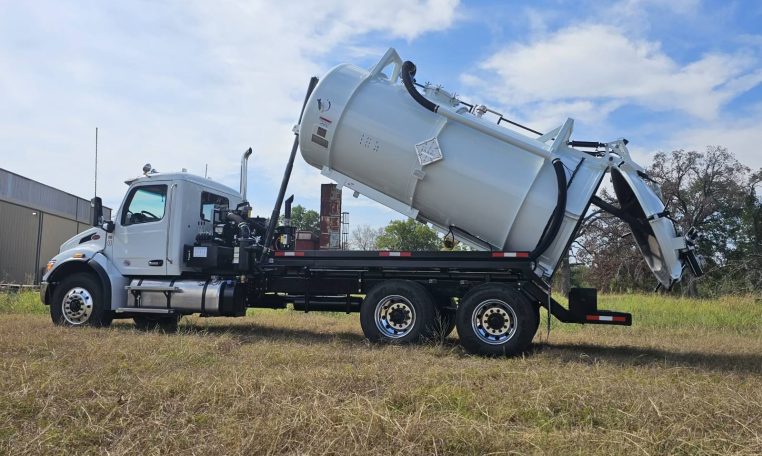

Hydraulic Operated Tank Hoist
Two (2) Vacuum Hose Hooks on the Rear Tank Head
Full-Length Hose Trays on Both Sides of the Tank
Pressure Relief Valve Set at 14 PSI
Vacuum Relief Valve Set at 23″
Four (4) Multi-Purpose Placards
Back-Up Alarm
Steel 18″ x 18″ x 36″ Toolbox
Heavy-Duty DOT Rear Bumper for Under-Ride Protection

Located in Texas. Manufacturer Warranty. Financing and Leasing Available. Call 888-432-9070 for More Information. Delivery Available.




Stock #:	GL2491
Location:	Texas
Truck Type:	DOT Code Trucks
Condition:	New
Year:	2025
Make:	Peterbilt
Model:	548
Engine Make:	Paccar
Engine Model:	PX-9
Horsepower:	350
Fuel Type:	Diesel
Transmission:	Automated
Engine Brake:	Yes
Suspension Type:	Air Ride
Wheels:	Aluminum
Wheelbase inches:	230
Rear Axles:	Tandem
GVWR:	60,000
Front Axle Weight:	20,000
Rear Axle Weight:	40,000
Differential Lock:	Yes
Fuel Capacity:	50-Gallons
A/C:	Yes
Power Windows:	Yes
Power Locks:	Yes
DOT Inspection:	Yes
Body Make:	Diamond ECO Solutions
Body Model:	DOT 412 Code
Vacuum Type:	Rotary Vane Pump
Pump Make:	Jurop
Pump Model:	RV520
CFM Rating:	530
Pump Hg. Rating:	28"
Tank Type:	DOT 412
Tank Material:	Carbon Steel
Compartments:	One
Tank Capacity:	3150-Gallons

DISCLAIMER: Photos, specifications, prices, and all other information are subject to change or correction without notice. While every effort is made to ensure the listed data is correct, there may be an instance where some of the pictures, options, or vehicle features may be incorrectly listed as we receive the data from multiple data. PLEASE MAKE SURE to confirm the details of the vehicle to ensure its accuracy. Dealer cannot be held liable for errors, omissions or data that is listed incorrectly.

All equipment photographs on this website depict new and used equipment and Great Lakes Equipment Sales, Inc. (“SELLER”) does not assert their accuracy or completeness. SELLER is not a manufacturer or servicer of equipment. Physical inspection of equipment is encouraged, and any purchasing decisions should be based upon such actual inspection thereof as the interested person deems appropriate, SELLER makes no representations or warranties whatsoever including, without limitations that may be incorrect such as the vehicle's title, year, model, condition, hours, milage, history, merchantability or fitness for a particular purpose.

All sales of shall be “Sold As Is Where Is Without Warranty” unless stated otherwise in writing. Taking possession of a vehicle constitutes as it is and an acknowledgment that the buyer has either fully inspected or accepted all parts of the vehicle sight unseen.

Pricing does not include state, local sales tax, and Federal Excise Tax (if applicable), licensing, and dealer document preparation charges, or any finance charges (if applicable). Final actual sales price may vary depending on options or accessories selected.
