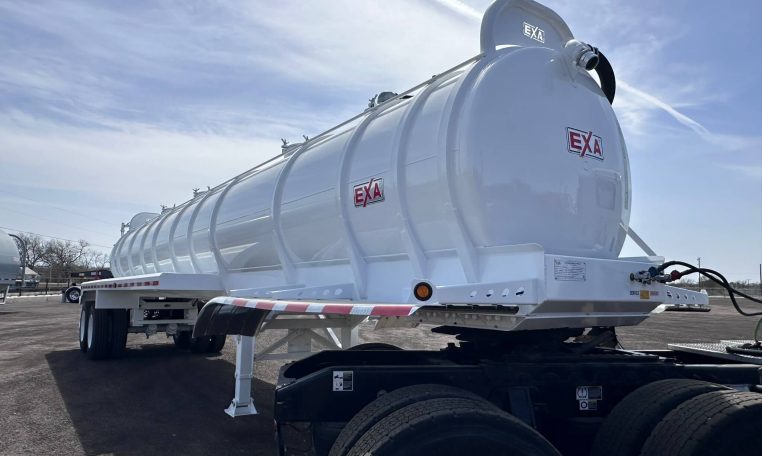

2024 EXA Carbon Steel (130 BBL / 5460-Gallon) Non-Code Vacuum Trailer

$52,900.00

FET $5,999 NOT INCLUDED
Click To Apply

IN-STOCK

Vehicle Overview
Features & Options

Stock Number GL2448

EIGHT (8) VACUUM TRAILERS IN-STOCK

PRICE: $52,900 + FET $5,999 = TOTAL $58,999

LEASE FOR AS LOW AS $1,065 PER MONTH FOR 72-MONTHS WITH $1.00 BUYOUT – BASED ON APPROVED CREDIT

*FEDERAL EXCISE TAX ($5,999) IS NOT INCLUDED IN THE SALE PRICE FOR US BUYERS – INCLUDED IN LEASE PAYMENT

*FEDERAL EXCISE TAX NOT INCLUDED IN SALE PRICE FOR US BUYERS

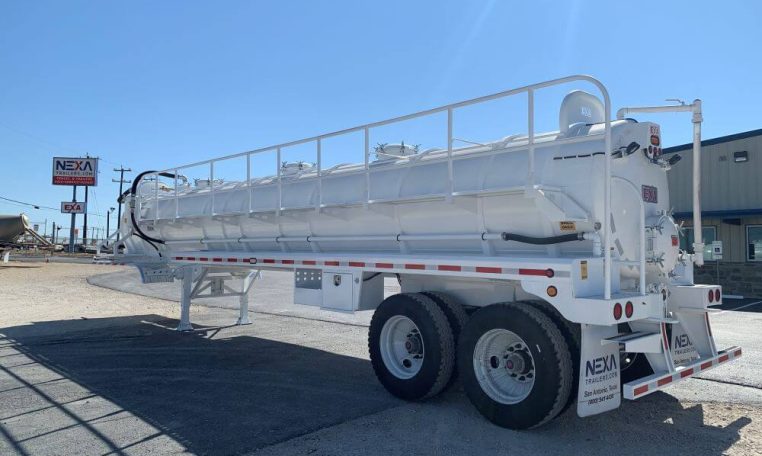

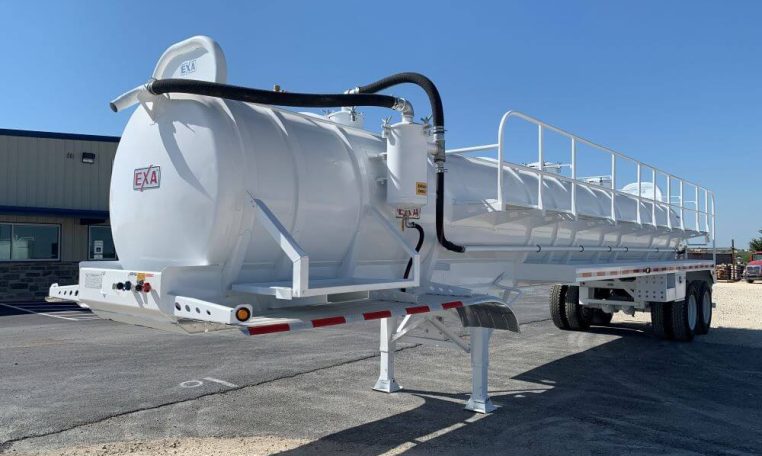

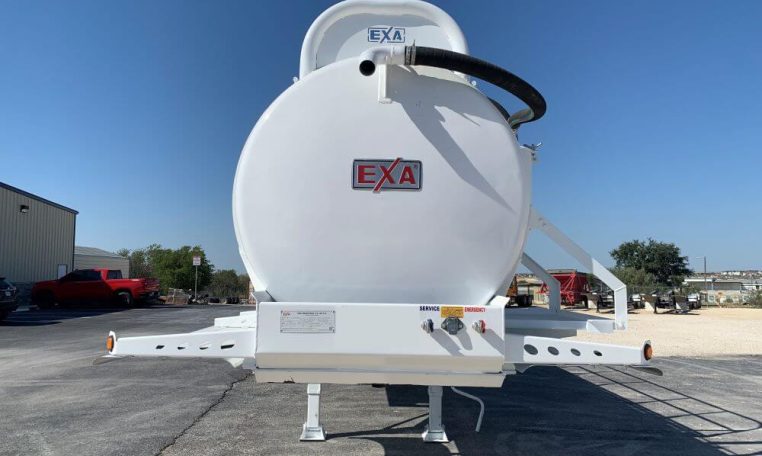

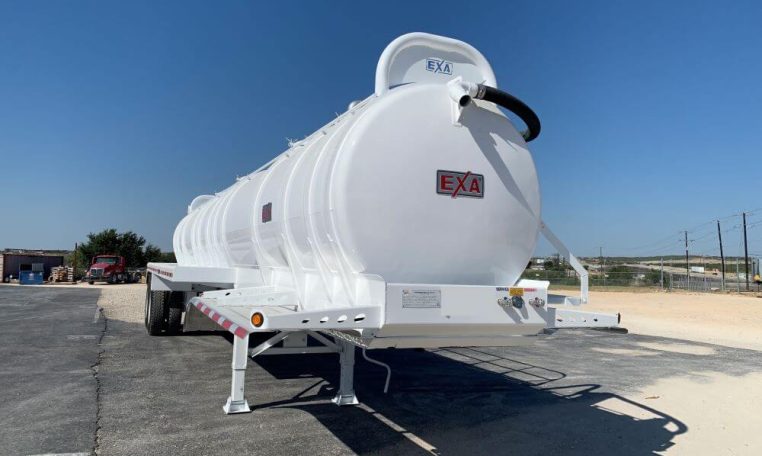

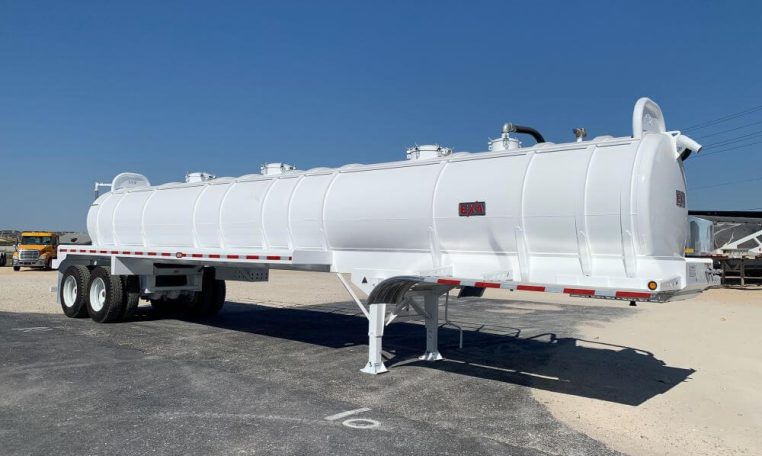

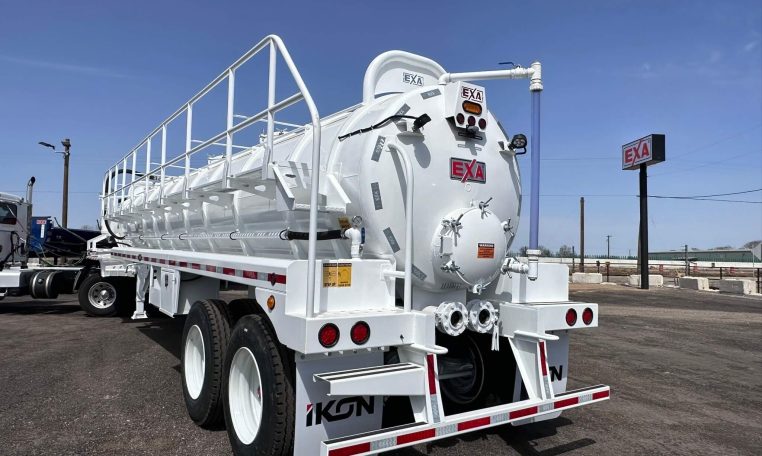

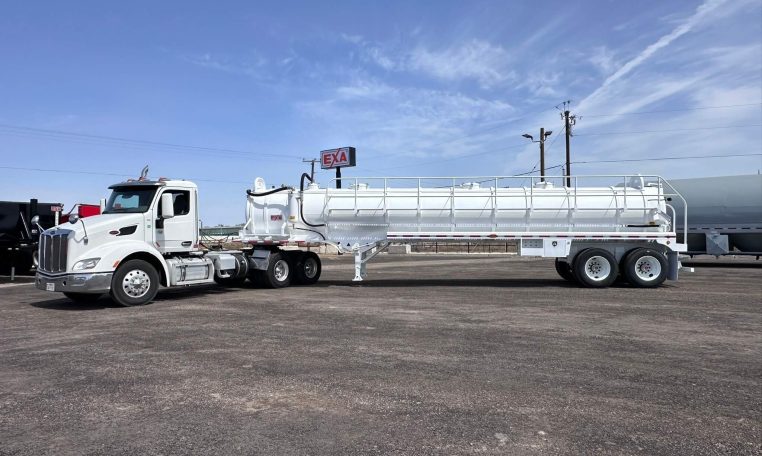

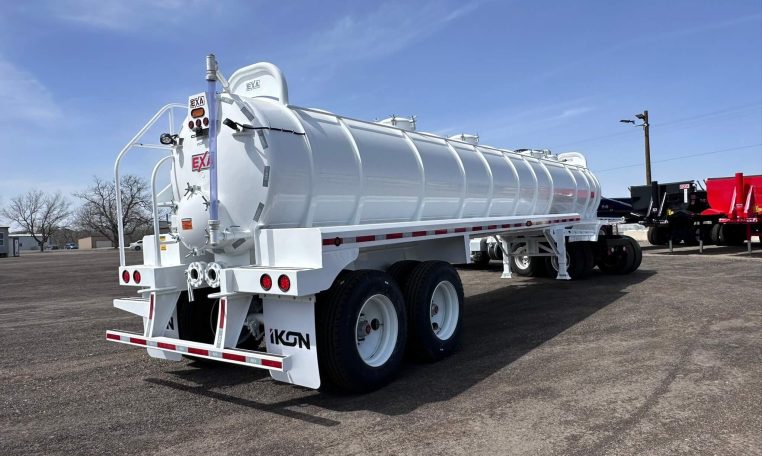

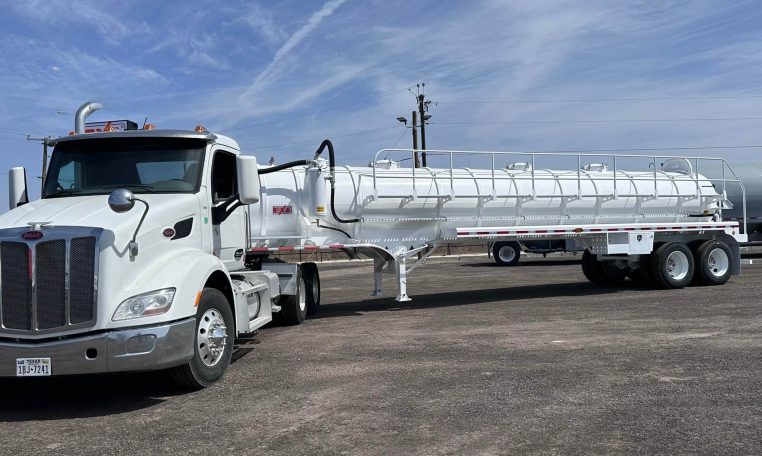

2024 EXA Carbon Steel (130 BBL / 5460-Gallon) Non-Code Vacuum Trailer

Capacity: 130 BBL / 5460-Gallon + 1% Expansion
Commodity: Transportation of Oilfield Fluids Such as Water, Mud, and Oilfield Waste
Design Pressure: 15 PSI, Tested at 23 PSI
Overall Length: 42′
Height: 10′ 5″
Weight: 17,350 lbs
Width: 102″
Material: A-36 Carbon Steel

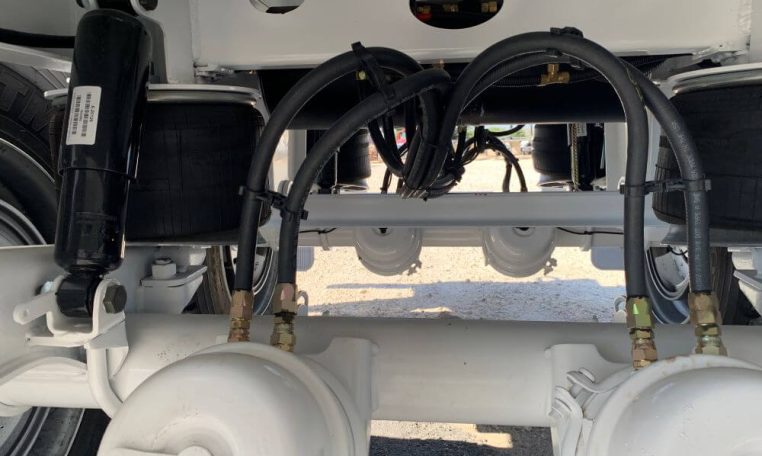

Suspension: Air Hendrickson HT300 60,000 lbs. Capacity
Baffles: Three (3) 1/4″ Thick Baffles
Bulkheads: 1/4″ Non-Code ASME Shape
Compartments: Single
Overturn Protection: Two (2) at the Front and Back of the Tank
Shell: 1/4″ A-36 Steel
Stiffeners: Twelve (12) Rolled 3″ C-Channel Profile
Welding: Inside and Out, Minimal Tie-Ins w/ Mig Welding
Connections: 3″ Vacuum Inlet Connector

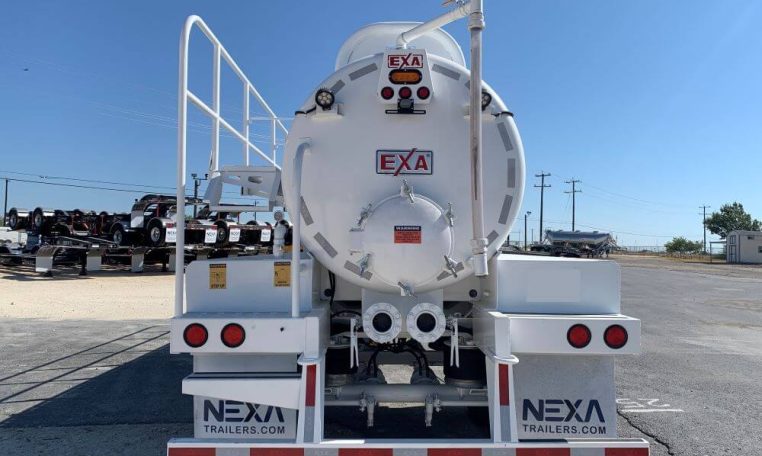

Outlet: Two (2) 4″ Butterfly Valves at the Rear

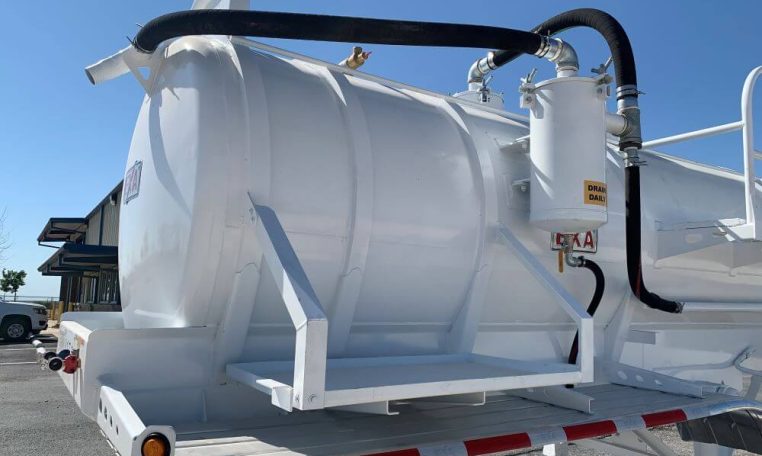

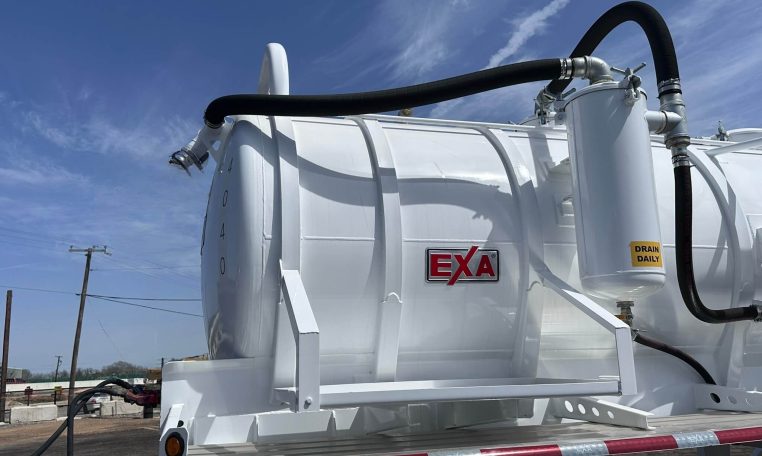

Shut Off: Ball Type Primary in Front Manway and Ball Type Secondary (12-Gallon) on Drivers Side Front w/ Drain
Venting/Reliefs: 1-1/2″ Vacuum Relief (370 CFM), 2″ Pressure Relief (Adjustable, Set at 10 PSI), both Located at the Top Front of the Barrel, 2″ Blowdown Line at the Rear

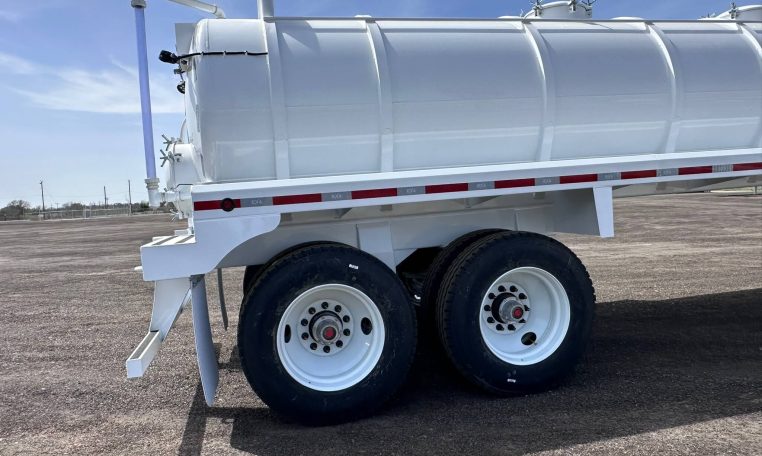

Axles: Two (2) 30,000 lbs. Each 120″ Wide, 77.5″ Track TP Type w/ Automatic Slack Adjuster
Brakes: Air Brakes w/ Two (2) Boosters FMVSS-121, ABS 4S/2M Bendix Anti-Lock Brake System
Bumper: 4″ x 3″ Tube Per DOT
Frame: High Strength 3/16″ Formed
Landing Gear: 2-Speed JOST Heavy-Duty
Tires: Eight (8) 11 x 24.5 R All-Terrain Tires
Upper Coupler: Adjustable Plate w/ Holland King Pin
Wheels: Ten (10) Budd Wheels, Powder Coated White
Access Ladder: One (1) Stairway in the Rear w/ Thru-Tread Steps
Walkway: Driver’s Side Tank Length Through-Treaded Walkway w/ Toe-Kicks and Handrails

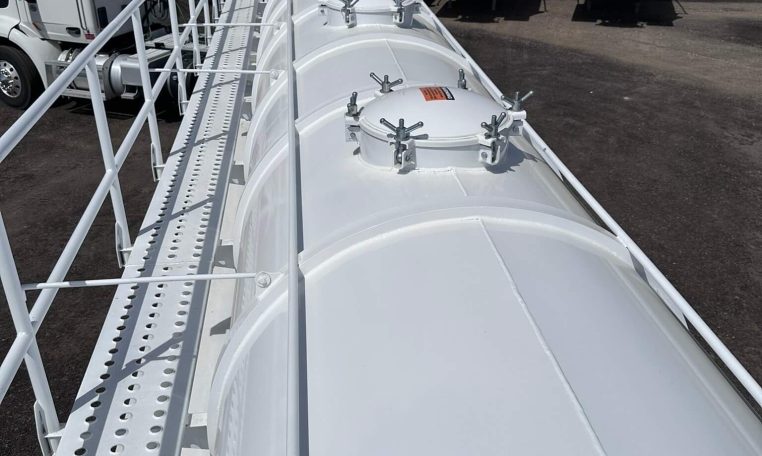

Manways: Three (3) on Top of the Tank (Betts or Knappco), One (1) on the Rear Bulkhead, and One (1) on the Top Front Used as a Shutoff. All 20″ Domed Style w/ Plates Swing Bolts and Wing Nuts
External Coating: Hempel Two (2) Coats of Polyurethane on an Epoxy Primer
Internal Liner: Hempel Epoxy Liner
Paint Prep: All Steel Surfaces Shotblasted Inside and Out
Conspicuity Tape: 3M Per DOT
Hose Tray: Formed Hose Tray (10-Gallon) w/ 1/4″ Supports on Both Sides, and w/ 25′ Length
Lights: Sealed Harness w/ Grote LED Lights Per DOT. Two (2) Rear Work Lights w/ Integrated Switches
Mudflaps: Four (4) Anti-Sail

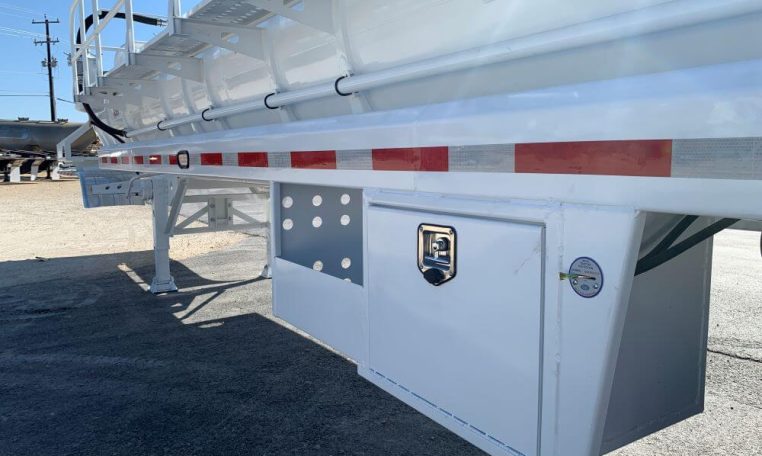

Toolbox: One (1) on the Drivers Side (30″ x 16″ x 24″)
Vacuum Manometer: One (1) Located in the Rear of the Blow Down Line
Optional Fluid Level: Level-Sight Rear or Front Located
Paint Color: Available in a Variety of Different Colors
Suspension (Optional): Hutch Spring
Fluid Level (Optional): Ball Float Type w/ Pointer Level Indicator, Eyr-Style Sight Glasses
Under Tank (Options): Additional Toolboxes, Tire Carrier, Chair Carrier
*Certain Features Shown Might Change Without Notice

Available Option:

Fruitland RCF 500 (338 CFM @ 28.5″ Hg.) Fan-Cooled Vacuum/Pressure Pump (Installed $11,000)

Located in Texas. Manufacturer Warranty. Financing and Leasing are Available. Call 888-432-9070 for More Information. Delivery Available.




Stock #:	GL2448
Location:	Texas
Truck Type:	Vacuum Trailers
Quantity:	(8) Trailers Available
Condition:	New
Year:	2024
Make:	NEXA
Model:	130 BBL Vacuum Trailer
Suspension Type:	Air Ride
Wheels:	Powder Coated Steel
Rear Axles:	Tandem
Front Axle Weight:	30,000
Rear Axle Weight:	30,000
Body Make:	EXA
Body Model:	130 BBL
Vacuum Type:	Available Option
Tank Type:	Non-Code
Tank Material:	Carbon Steel
Compartments:	One
Tank Capacity:	130 BBL / 5460-Gallons

DISCLAIMER: Photos, specifications, prices, and all other information are subject to change or correction without notice. While every effort is made to ensure the listed data is correct, there may be an instance where some of the pictures, options, or vehicle features may be incorrectly listed as we receive the data from multiple data. PLEASE MAKE SURE to confirm the details of the vehicle to ensure its accuracy. Dealer cannot be held liable for errors, omissions or data that is listed incorrectly.

All equipment photographs on this website depict new and used equipment and Great Lakes Equipment Sales, Inc. (“SELLER”) does not assert their accuracy or completeness. SELLER is not a manufacturer or servicer of equipment. Physical inspection of equipment is encouraged, and any purchasing decisions should be based upon such actual inspection thereof as the interested person deems appropriate, SELLER makes no representations or warranties whatsoever including, without limitations that may be incorrect such as the vehicle's title, year, model, condition, hours, milage, history, merchantability or fitness for a particular purpose.

All sales of shall be “Sold As Is Where Is Without Warranty” unless stated otherwise in writing. Taking possession of a vehicle constitutes as it is and an acknowledgment that the buyer has either fully inspected or accepted all parts of the vehicle sight unseen.

Pricing does not include state, local sales tax, and Federal Excise Tax (if applicable), licensing, and dealer document preparation charges, or any finance charges (if applicable). Final actual sales price may vary depending on options or accessories selected.
