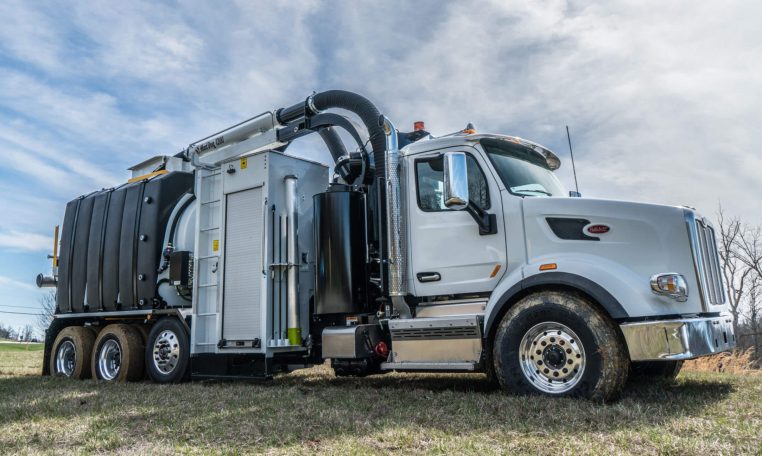

2025 Mud Dog 1200 PD (12 Yard / 1500 Water) Hydro Excavation Truck w/ Auto Trans

Call for Price
Click To Apply

IN-PRODUCTION

Vehicle Overview
Features & Options

Stock Number GL2438

*IN PRODUCTION FOR MARCH/APRIL 2025 COMPLETION

CALL FOR PRICE

LEASE FOR AS LOW AS $9,975 PER MONTH FOR 72 MONTHS WITH $1.00 BUYOUT – BASED ON APPROVED CREDIT

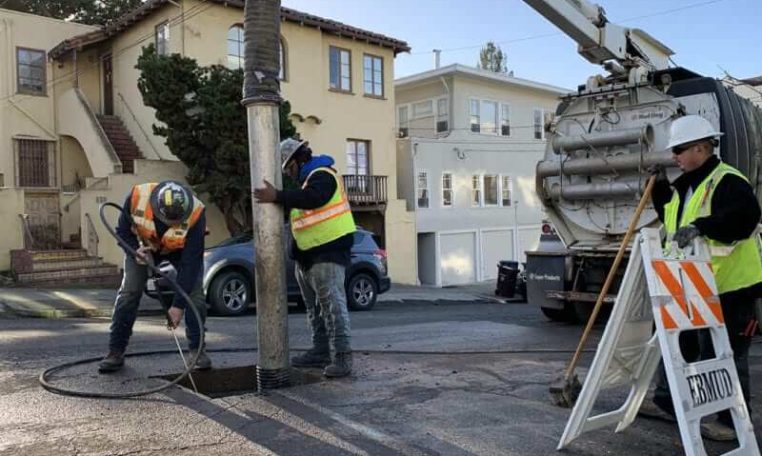

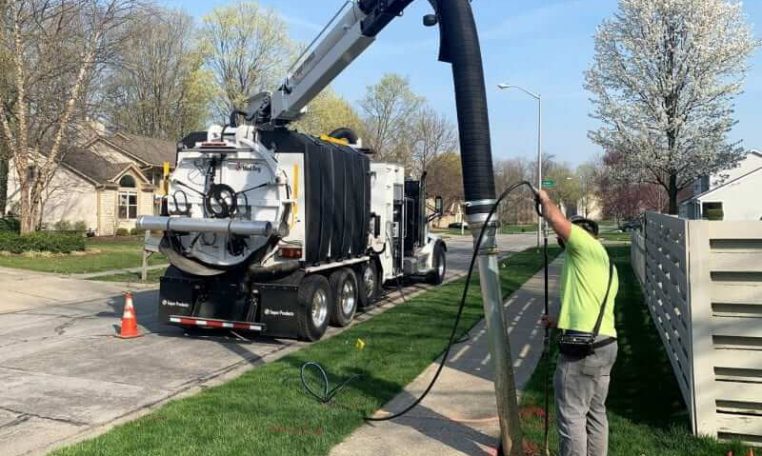

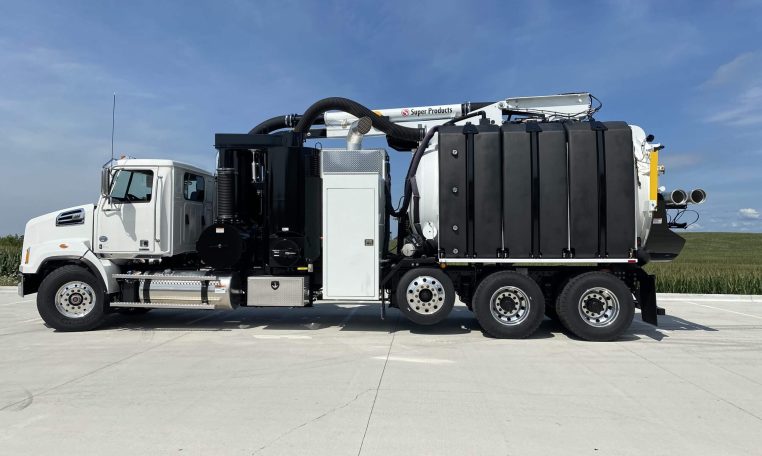

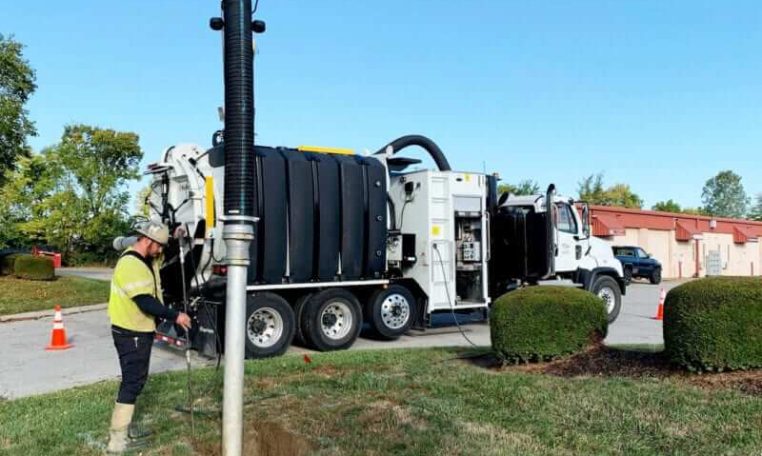

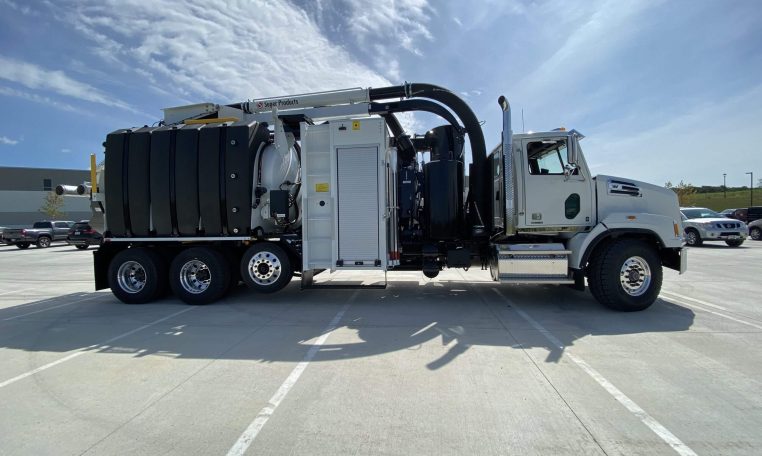

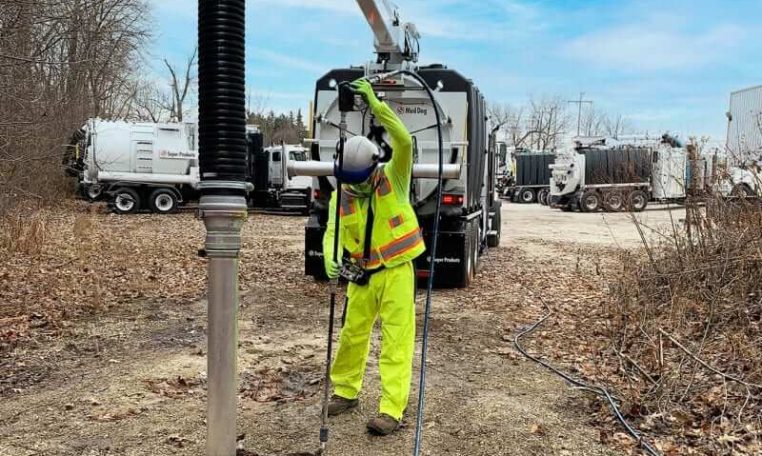

*PICTURES ARE NOT OF THE ACTUAL TRUCK

PRICING SUBJECT TO CHANGE

2025 Peterbilt Model 567 8X6 Chassis, Cummins ISX15 (450HP) Diesel Engine, Allison 4500 RDS-P 6-Speed Automatic Transmission, 20,000# Fronts, and 46,000# Rears w/ Steerable Lift Axle, Taper Leaf Front Suspension, Air Trac Rear Suspension, Diff Locks, 308″ Wheelbase, Anti-Lock Breaking System, 4.30 Rear Axle Ratio, 135-Gallon Fuel Tank, Power Windows and Locks, Engine Block and Pan Heater, Alcoa Polished Aluminum Wheels, 20,000# Fronts, and 46,000# Rear Axles w/ 13,500# Self-Steering Pusher Axle, 79,500 GVWR.

Mud Dog 1200 PD Hydro Excavator

12 Cubic Yard Debris Body

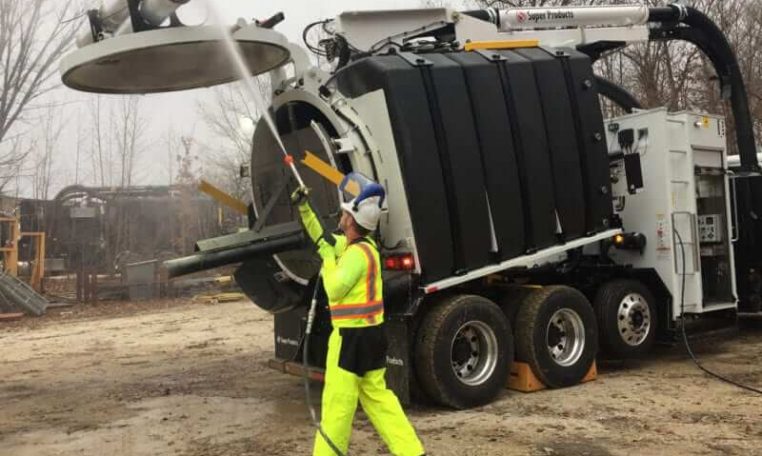

Internal Body Flush-Out System

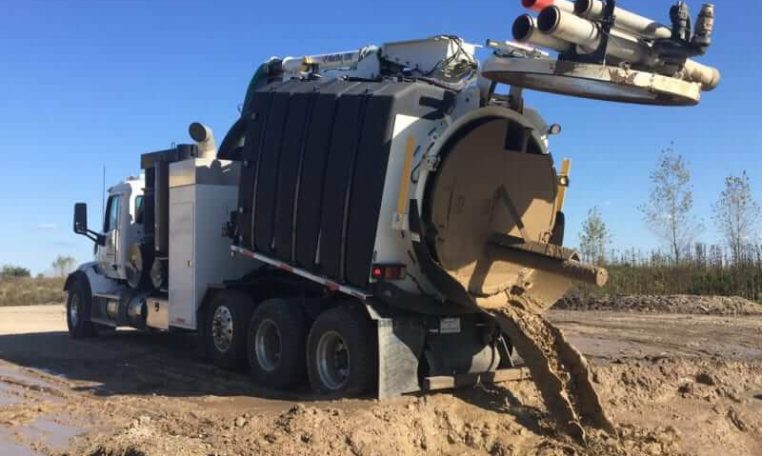

Ejector Unloading System
2′ Body Lift for Easy Clean-Out

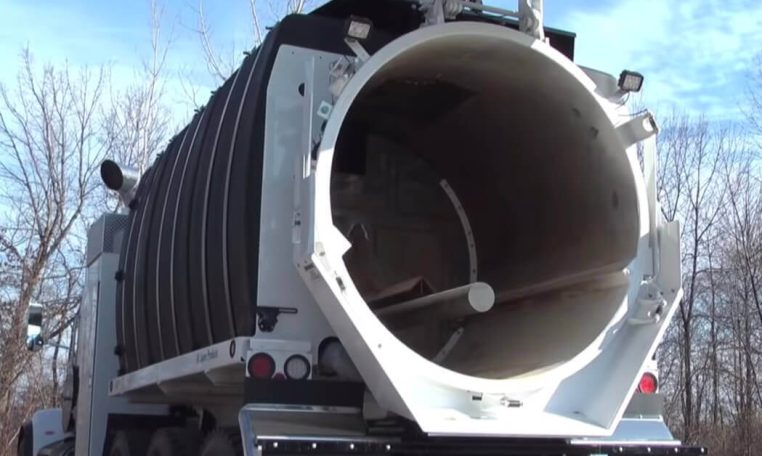

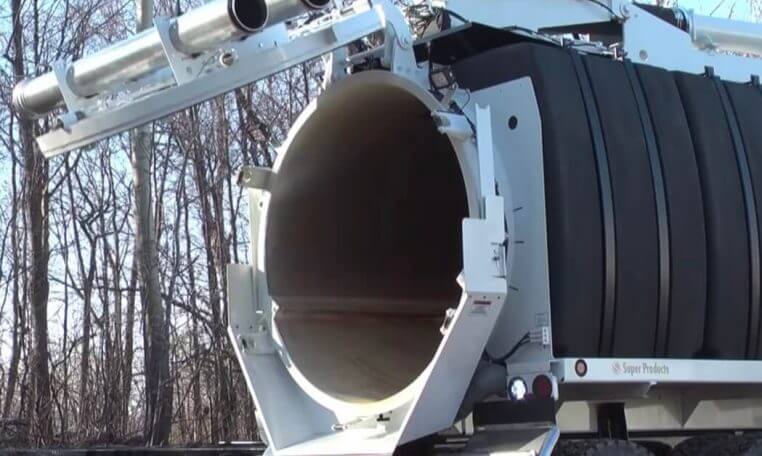

Full Diameter, Full Opening Flat Rear Tailgate
Stainless Steel Tailgate Splash Shield
1500-Gallon Water Capacity
Dresser Roots (6,000 CFM @ 28″ Hg.) PD Vacuum Blower

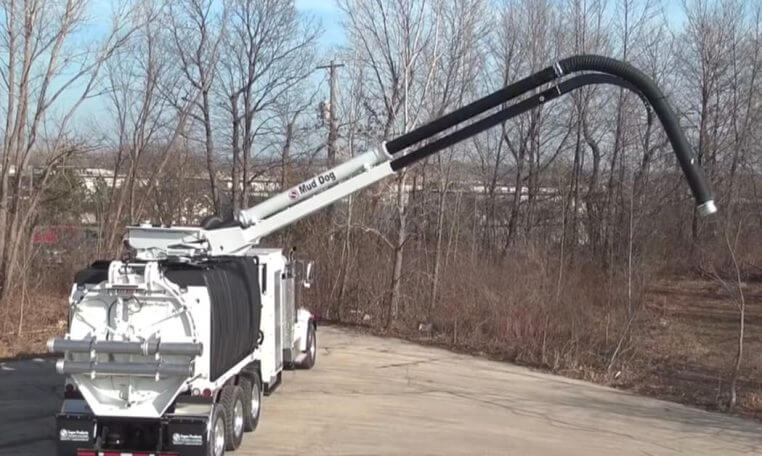

8″ Hydraulic Telescoping Vacuum Boom w/ 19″ to 27′ Reach
335-Degree Boom Rotation w/ Heavy Duty Rubber Elbow

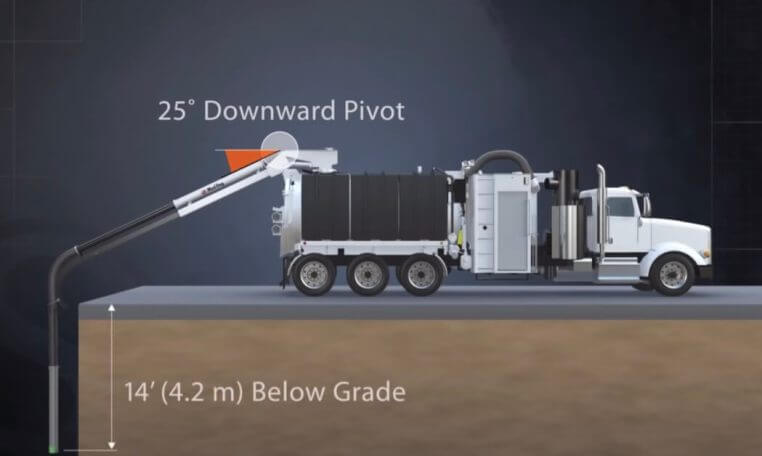

Boom Pivots 25-Degrees Down for 8′ of Extra Digging
Remote Greasing System
Wireless Remote Control
Remote Greasing System for Boom and Tailgate
Triplex 18 GPM @ 3,000 PSI Water Pump, Hydraulic Drive w/ Variable Flow on Remote
Curbside Water Fill
Hose Reel Capacity: 100′ x 1/2″ of Hose
Water Heater Capacity 714,000 BTU Heater
Wireless and Wired Remote Controls
Cold Weather Winter Recirculation System
Antifreeze Injection, Air Purge System
Heated and Insulated Lines
Vacuum Tube Storage
Aluminum Cabinet Heated by Dual 65,000 BTU Heaters
Aluminum Diamond Plate 18″ H x 18″ D x 36″ W Toolbox on Drivers Side
Exterior Water Lines are Heated for Extreme Winter Operation
LED Lighting Package Includes Front Strobe, Rear Arrow Stick, Stop and Turn Signals
Lighting Package Includes Dual Boom Lights, Exterior Cabinet Light, and Boom Cradle Light
Safety Alarms Include Boom Out of Cradle and Body Up
List of Included Accessories Available Upon Request

Available Options:

Sludge Pump Rated at 500 GPM
Liquid Transfer Pump Rated at 300 GPM
Second Hose Reel

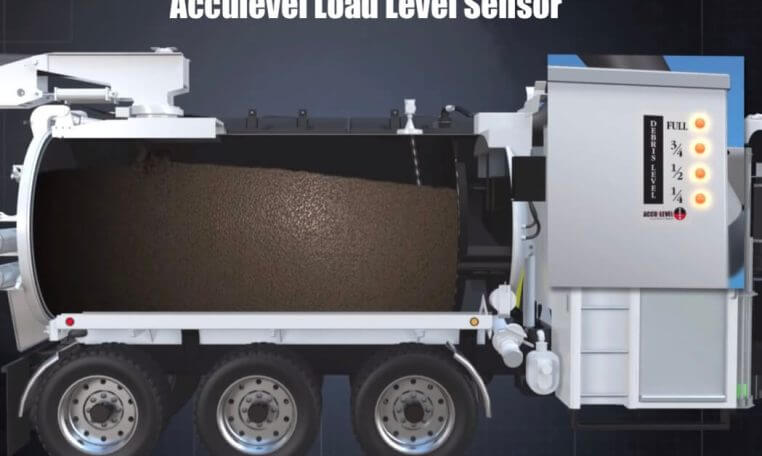

Acculevel Load Level Sensor
Dual Tire Chain Racks (Chains Not Included)
Air Excavation System
Sign Boards for Water Tanks
On-Board Scale System
Ground System

Located in Wisconsin. Manufacturer Warranty. Financing and Leasing are Available. Call 888-432-9070 for More Information. Delivery Available.




Stock #:	GL2438
Location:	Wisconsin
Truck Type:	Hydrovac Trucks
Condition:	New
Year:	2025
Make:	Peterbilt
Model:	567
Engine Make:	Cummins
Engine Model:	ISX15
Horsepower:	450
Fuel Type:	Diesel
Transmission:	Automatic
Engine Brake:	Yes
Suspension Type:	Air Trac
Wheels:	Aluminum
Wheelbase inches:	308
Rear Axles:	Tri
GVWR:	79,500
Front Axle Weight:	46,000
Rear Axle Weight:	20,000
Lift Axle Weight:	13,500
Lift Axle Type:	Self-Steer
Differential Lock:	Yes
Fuel Capacity:	135-Gallons
A/C:	Yes
Power Windows:	Yes
Power Locks:	Yes
DOT Inspection:	Yes
Body Make:	Super Products
Body Model:	Mud Dog 1200
Vacuum Type:	Vacuum Blower
Pump Make:	Roots
CFM Rating:	6,000
Pump Hg. Rating:	28"
Water Pump:	Yes
Pump Make:	Triplex
GPM Rating:	18
PSI Rating:	3,000
Vacuum Boom:	Yes
Remote Control:	Wireless Remote
Sludge Pump:	Available Option
Hot Water Boiler:	Yes
Boiler BTU Rating:	705,000
Tank Material:	Carbon Steel
Tank Capacity:	12 Cubic Yards
Water Capacity:	1500-Gallons
