2024 Ford F-550 XL 4X2 (700 Waste / 150 Water) Low Profile Vacuum Truck w/ Kelderman Air Suspension, Sewer Jetter, and Hydraulic Tank Hoist
Stock Number GL2536
*IN-STOCK
PRICE: $230,000
LEASE FOR AS LOW AS $3,840 PER MONTH FOR 72 MONTHS WITH A $1.00 BUYOUT – BASED ON APPROVED CREDIT

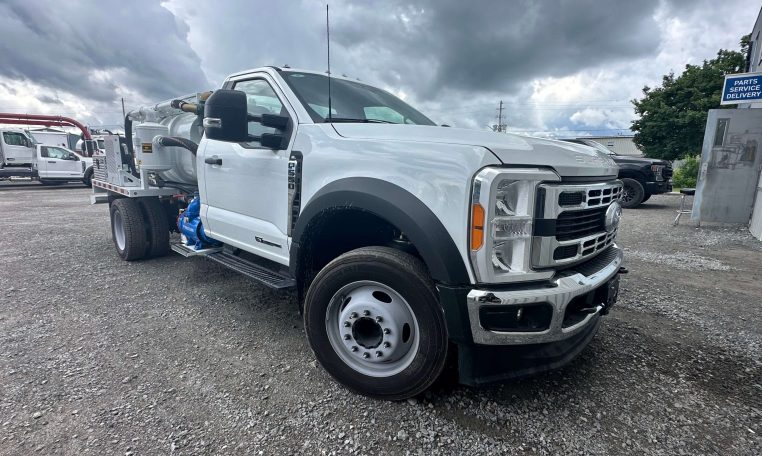

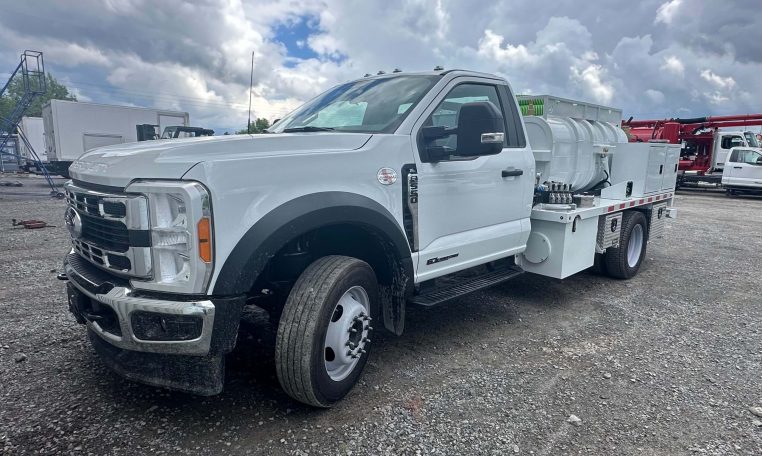

2024 Ford F-550 XL 4X2 Truck, Power Stroke 6.7L V8 (380 HP) Turbo Diesel Engine, TorqShift 10-Speed Automatic Transmission, Kelderman 6 Bag Air Lift Suspension System for Lifting or Lowering Truck for Low Clearance Parking Garages, 40/20/40 Cloth Seats, Power Windows, Locks, Mirrors, Limited Slip 4.30 Axle Ratio, 19,500 GVWR. Non-CDL Truck.

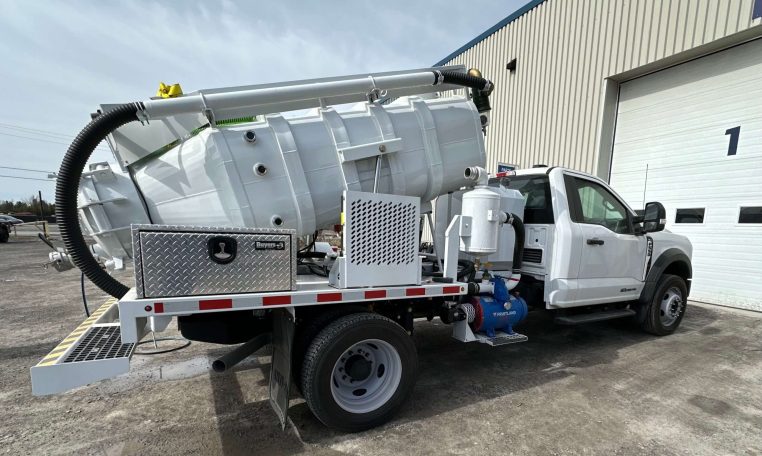

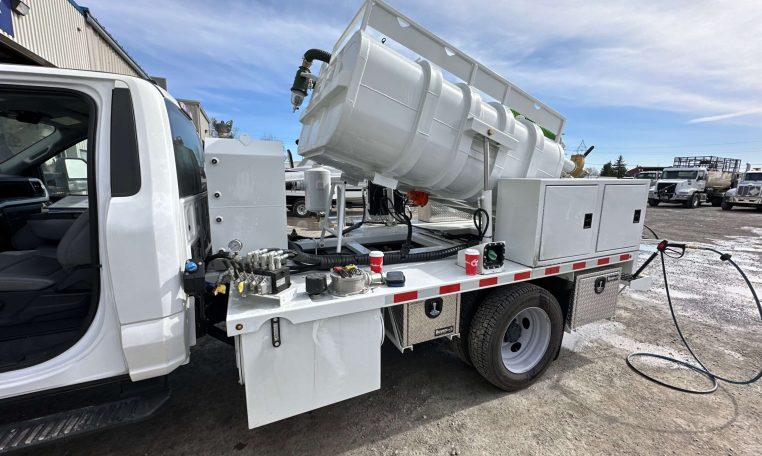

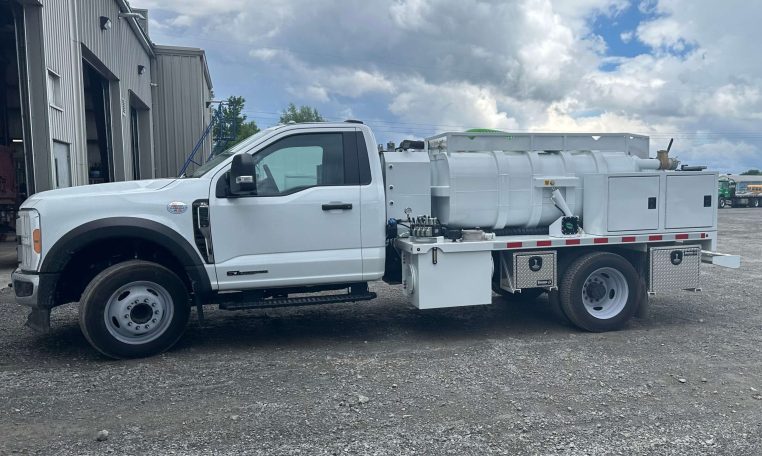

Low Profile Vacuum Truck w/ Tank Hoist and Jetter
- QUANTITY: (1) One
- TANK CAPACITY: 750 USG
- DESIGN: Design shall withstand 15-PSI internal pressure and full vacuum
- HEAD MATERIAL: 0.250 44W
- SHELL MATERIAL: 0.250 44W
- TANK SIZE: 30” x 60″ Rectangular
- PRESSURE RELIEF: 2” brass pressure vent, 15 PSIG setting mounted top of tank
- PRIMARY SHUT-OFF: 3″ internal shut-off with 6″ S/S float ball and cage assembly with neoprene rubber seat top front of tank. Low profile style to keep hose attachments below height of cab
- BAFFLE: (1) One
- MANWAY: None
- LIQUID LEVEL INDICATOR: (2) Two 5” diameter sight glass assembly located on rear head

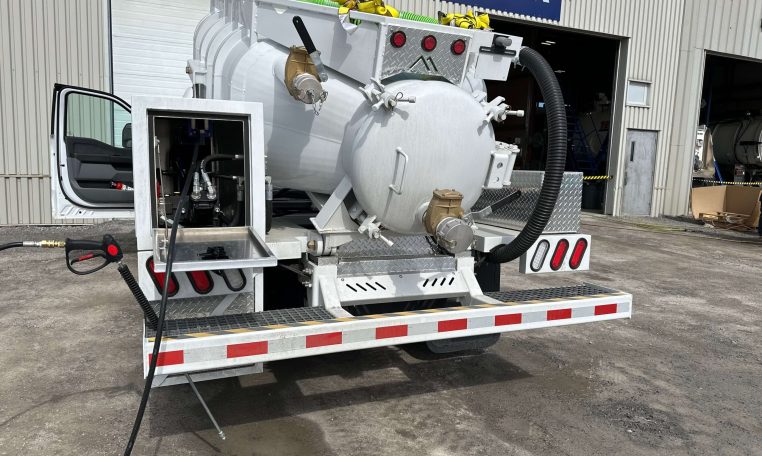

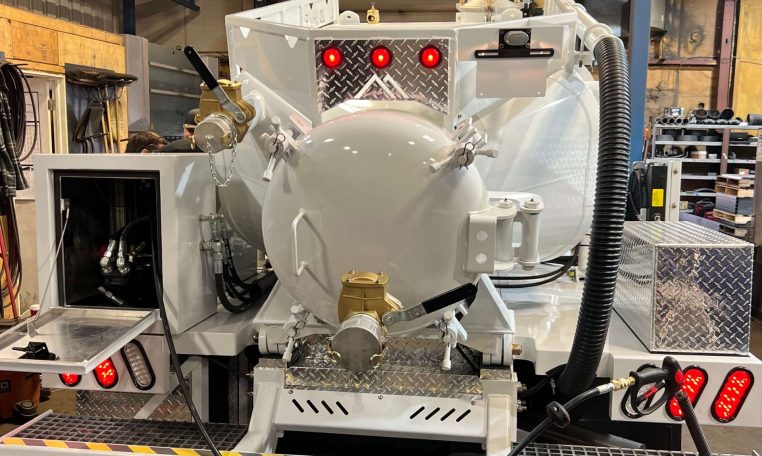

- REAR DOOR: 30″ side swing rear door assembly with (6) Six wing clamps, neoprene rubber rear door gasket
- BAFFLE: (1) One
- MANWAY: None
- LIQUID LEVEL INDICATOR: (2) Two 5” diameter sight glass assembly located on rear head
- REAR DOOR: 30″ side swing rear door assembly with 6 wing clamps, neoprene rubber rear door gasket
- SUCTION VALVE: 4″ brass manual valve with aluminum camlock fittings mounted on rear tapered shell section
- DISCHARGE VALVE: 4″ brass manual valve with aluminum camlock fittings mounted on bottom of rear door
- SECONDARY SHUT-OFF: Exterior moisture trap assembly with drain valve, sight glass, steel filter screen assembly, 4″ Stainless Steel float ball and cage assembly with neoprene rubber seat
- MUFFLER: 3″ muffler / oil trap assembly with drain valve and 12” swing-out bottom clean-out
- PIPING: Single 3″ diameter no disconnect piping to allow tank to dump with vacuum system connected with vacuum pump flush port and wire reinforced rubber hose

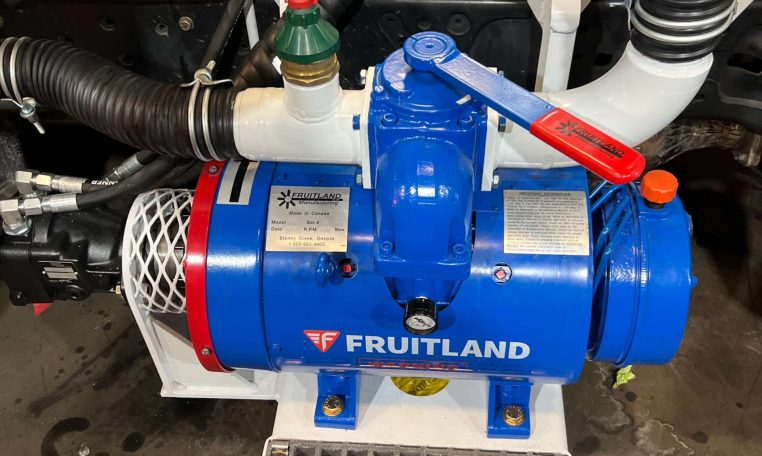

- PUMP SPECIFICATIONS: Fruitland RCF 370 (272 CFM @ 28.5 Hg.) fan-cooled rotary vane vacuum pump
- DRIVE: Hydraulically driven from air shift PTO mounted on transmission with hydraulic pump and motor
- HYDRAULIC RESERVOIR: Mounted on driver side with suction strainer, diffuser, fill cap, hydraulic oil filters and sight glass
- HYDRAULIC DUMP SYSTEM: Hydraulic dump with single acting dump cylinder, rear dump pivot assembly, and safety brace
- HYDRAULIC CONTROLS: 3-spool valve body for control of hydraulic dump, water pump and vacuum pump
- GAUGES: Glycerin filled vacuum/pressure gauge and hydraulic pressure gauge
- FENDERS: Formed steel fender assembly with anti-sail mud-flaps.
- TRIM: Aluminum toolbox assembly
- LIGHTING: DOT lighting with three lamp rear module assembly, clearance lamps, reflectors, three in a row clearance markers, one rear spotlights and one rear amber rotating beacon
- BUMPER: Rear bumper for protection of external valves
- PAINTING: The entire tank and body of the vacuum system shall be sandblasted and primed with two (2) coats of primer and painted with two (2) coats of single stage paint
ADDITIONAL ITEMS INCLUDED:
- Supply and install 6” tall rack on top of tank with expanded metal sides
- Hydraulic vibrator assembly mounted on bottom of tank with reinforcing pad, heavy duty mounting channel, pressure relief valve and variable speed control
- Interpump T1070 (5 GPM @ 2000 PSI) pressure washer / jetter with an elliptical aluminum 100-Gallon USG water tank, 75’ of 3/8” pressure hose, manual hose reel, hand gun, hydraulic drive, suction filter, un-loader valve, and mounting frame wash system to run simultaneously with vacuum pump.
- Work light installed at control location.
- Fire extinguisher.
Available Options:
- Glycol System
- Air Purge System
- Wireless Remote Control
Located in Ontario, Canada. MANUFACTURERS WARRANTY. Finance and Leasing Available. Call 888-432-9070 for More Information. Delivery Available.
 |
|
 |
|
 |
|
| Stock #: | GL2536 |
| Location: | Ontario, Canada |
| Truck Type: | Liquid Vac Trucks |
| Condition: | New |
| Year: | 2024 |
| Make: | Ford |
| Model: | F-550 XL 4X2 |
| Engine Make: | Power Stroke |
| Engine Model: | 6.7L V8 Turbo |
| Horsepower: | 330 |
| Fuel Type: | Diesel |
| Transmission: | Automatic |
| Suspension Type: | Air Ride |
| Wheels: | Steel |
| Rear Axles: | Single |
| GVWR: | 19,500 |
| A/C: | Yes |
| Power Windows: | Yes |
| Power Locks: | Yes |
| DOT Inspection: | Yes |
| Body Model: | Low Profile Vac |
| Vacuum Type: | Rotary Vane Pump |
| Pump Make: | Fruitland |
| Pump Model: | RCF 370 |
| CFM Rating: | 272 |
| Pump Hg. Rating: | 28.5" |
| Water Pump: | Yes |
| GPM Rating: | 5.5 |
| PSI Rating: | 2500 |
| Tank Type: | Non-Code |
| Tank Material: | Carbon Steel |
| Tank Capacity: | 700-Gallon |
| Water Capacity: | 150-Gallon |
|
|
|
